ETLSF-W

TOP feature
•115-120 lm/W, 1,700lm-10,800lm.
•Field-adjustable Power and CCT.
•Direct-Indirect flux ratio adjustable.
•Continuous run available.

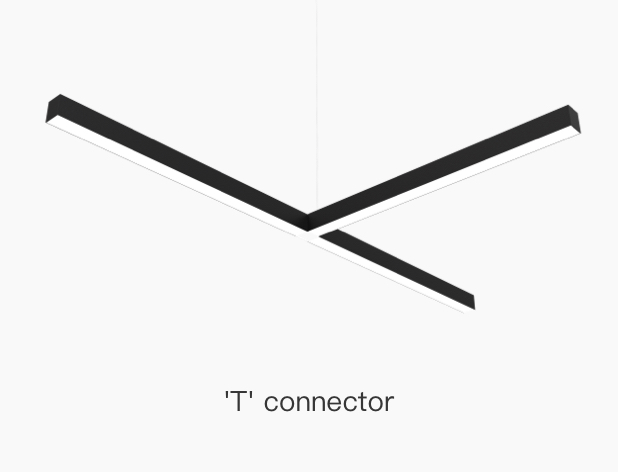

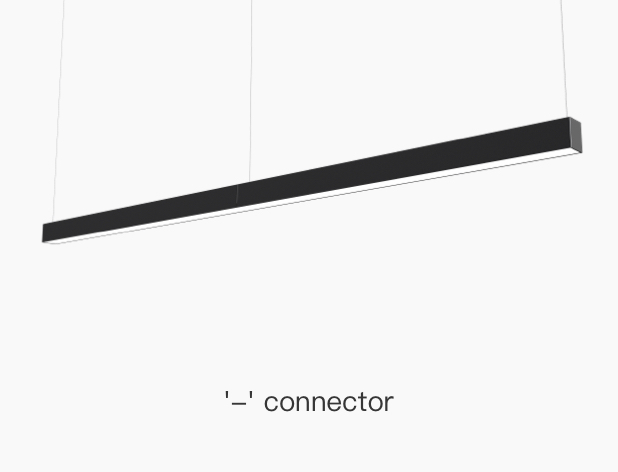

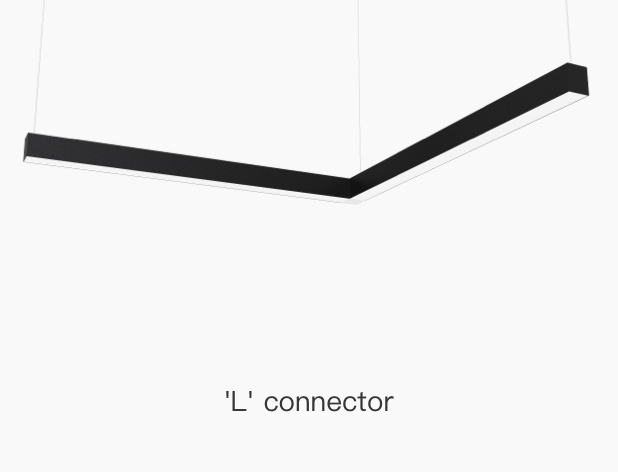

•Multiple connection methods.
•Sensor and EM solution ready.

  • 2.8” width fixture body, Direct or Direct-Indirect light

  • 1,700L – 10,800L 115~120 LPW

  • Yes

  • Yes

  • -20℃ - 50°C

  • 120-277V, 120-347V

  • 5.1S Linear ambient

  • sensor, EM, Dim to Off

  • 2ft, 4ft, 8ft

Availability:

twitter sharing button
facebook sharing button
line sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button
ETLSF-W
Paras & Icons
Download
SPEC
Video
Accessories





 SPEC
  • Direct-Indirect, Flux ratio & Power & CCT Field-adjustable
    加 Created with Sketch.
    形状 Created with Sketch.

    Catalog No.

    Size

    Input Wattage

    Lumens Rated

    LPW

    CCT

    ETLSFC-W-2FT/NI/25/20/15/YDM/CCT

    2ft

    25/20/15

    2,875/2,300/1,725

    115

    Selectable, 3500K/4000K/5000K

    ETLSFC-W-4FT/NO/35/30/25/YDM/CCT

    4ft

    35/30/25

    4,025/3,450/2,875

    115

    Selectable, 3500K/4000K/5000K

    ETLSFC-W-4FT/NR/50/45/40/YDM/CCT

    4ft

    50/45/40

    5,750/5,175/4,600

    115

    Selectable, 3500K/4000K/5000K

    ETLSFC-W-8FT/NO/65/60/55/YDM/CCT

    8ft

    65/60/55

    7,475/6,900/6,325

    115

    Selectable, 3500K/4000K/5000K

    ETLSFC-W-8FT/NR/90/75/65/YDM/CCT

    8ft

    90/75/65

    10,350/8,625/7,475

    115

    Selectable, 3500K/4000K/5000K
  • Direct, Power & CCT Field-adjustable
    加 Created with Sketch.
    形状 Created with Sketch.

    Catalog No.

    Size

    Input Wattage

    Lumens Rated

    LPW

    CCT

    ETLSFA-W-2FT/NI/25/20/15/YDM/CCT

    2ft

    25/20/15

    3,000/2,400/1,800

    120

    Selectable, 3500K/4000K/5000K

    ETLSFA-W-4FT/NO/35/30/25/YDM/CCT

    4ft

    35/30/25

    4,200/3,600/3,000

    120

    Selectable, 3500K/4000K/5000K

    ETLSFA-W-4FT/NR/50/45/40/YDM/CCT

    4ft

    50/45/40

    6,000/5,400/4,800

    120

    Selectable, 3500K/4000K/5000K

    ETLSFA-W-8FT/NO/65/60/55/YDM/CCT

    8ft

    65/60/55

    7,800/7,200/6,600

    120

    Selectable, 3500K/4000K/5000K

    ETLSFA-W-8FT/NR/90/75/65/YDM/CCT

    8ft

    90/75/65

    10,800/9,000/7,800

    120

    Selectable, 3500K/4000K/5000K


Video



Accessories

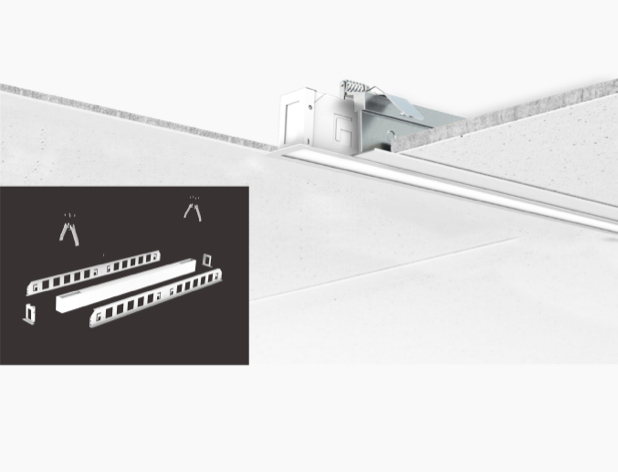

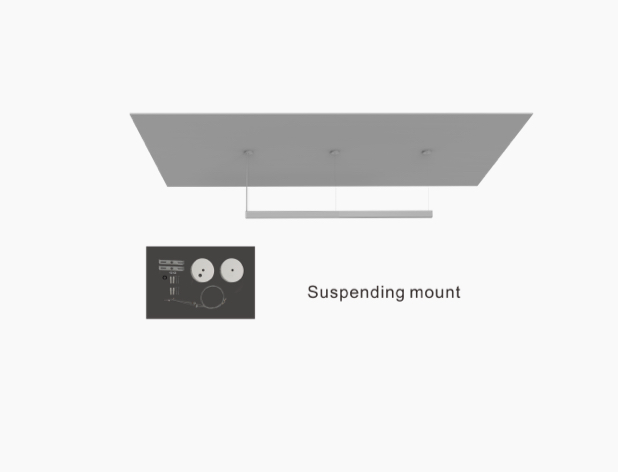

Installation accessories





Sensor solution
